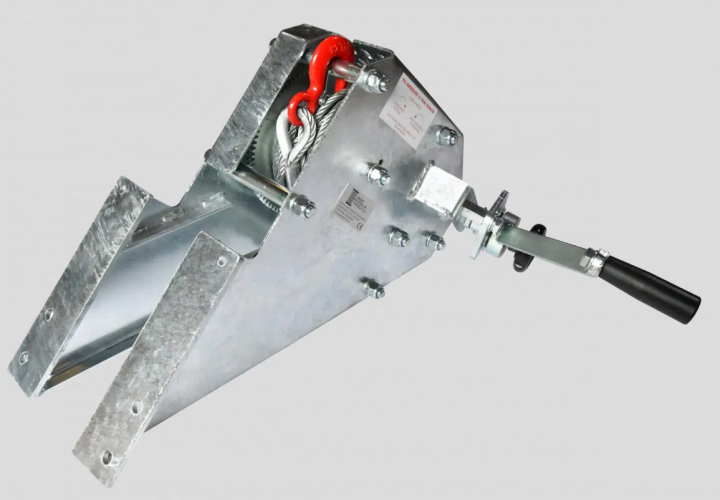

The SP4680B is vertical mounted without the need for a base plate or platform and can be fitted to various trailers, eg Ifor Williams ranges LM/CT, Batesons General Purpose/Plant, Nugent Beavertail/General Purpose/Flat Bed, Brian James Cargo Connect, as well as other manufacturers. 3000 kg winches are lower geared, so it takes less effort to turn the handle.
Mount: Vertically mounted
Rating: 3000 kg rolling weight up a 30 degree slope
Shipping Weight: 24kg
SP4685B comes with an 8 mm diameter x 12 metres long galvanised steel rope with eye hook on the end fitted to the winch. The wire winch can be used to pull at up to 20 degree angle side to side, and even more if using a fair lead. The drum is of a size in diameter that reduces wear and tear on the rope and positive anchorage of the rope to the drum for safety.
