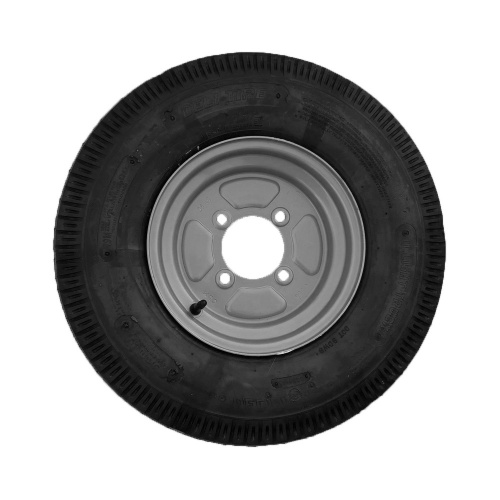

5.00-10, 4 stud wheel assembly 115mm

Wheel & tyre 500×10″ 115mm PCD on 4 stud to suite many makes of trailer.

Tyre is a 5.00 x 10″ high speed tubeless light truck tyre.

Wheel rim is a 4 stud with a pitched circular diameter of 115mm. The centre bore measures 85mm.

For use on general use trailers, camping trailers and many more with 115mm PCD hubs/drums.

Suitable for use on the following trailers when fitted with 115mm hubs;
Daxara 147, 148
Erde 142, 143 Hubs
CH451 Motorcycle Trailer
Franc GA150, Trax Duo, Mono Pro
Trigano AL234 Trailers

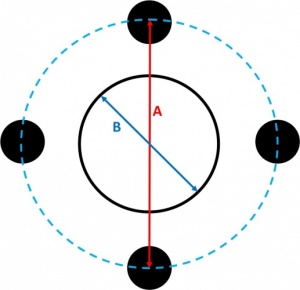

Measurements on drawing
A = 115mm
B = 85mm
