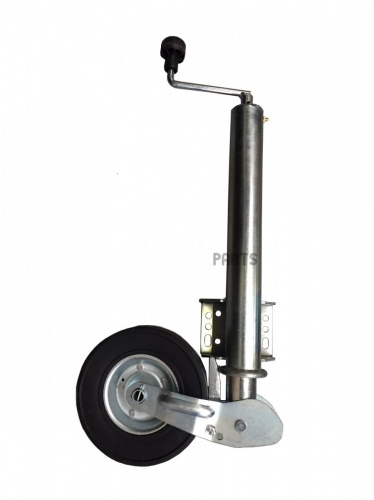

60mm 300Kg Auto Fold Jockey Wheel

60mm 300Kg auto fold jockey wheel constructed for heavy duty trailer applications up to 300kg static nose weight, for example:
Car transporter
Horse box
Livestock
Plant
Twin axle trailers
60mm outer tube diameter
Height extension range 490mm
Handle extension 130mm
Tyre size 220x65mm.
Max static load with clamp 300kg
Wheel is raised automatically during retraction & locks in the raised position. It is released automatically when wound down again with the handle.
Ball-race handle bearing ensures smooth and easy handle rotation
Grease nipple bearing lubrication inlet
Solid rubber tyre & steel rim

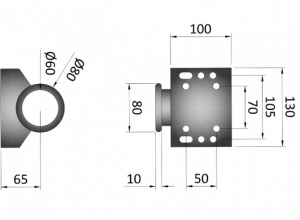

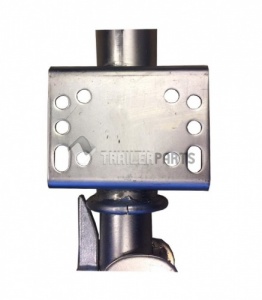

Supplied with integral mounting plate (100 x 130mm) for easy fitting onto the trailer
Zinc plate finish
