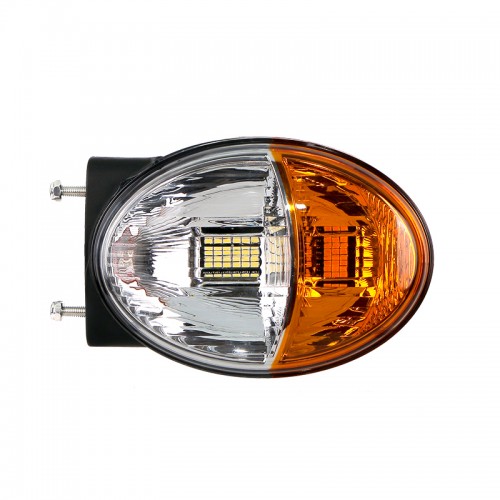

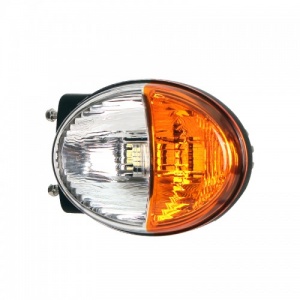

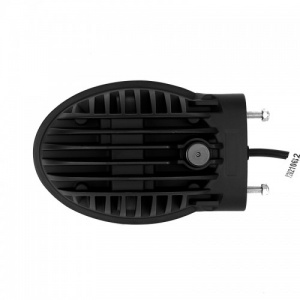

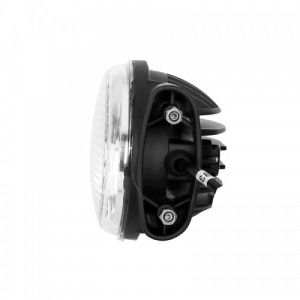

FRONT LED POSITION LIGHT WITH TURNING INDICATOR FOR TRACTOR

O.E.M Ref: 4384570M1 4384571M1
Compatible With The Following

Massey Ferguson

5600 Series : 5608, 5609, 5610, 5611 DYNA 4, 5611 DYNA 6, 5612 DYNA 4, 5613 DYNA 4, 5613 DYNA 6

5700 Series: 5708 DYNA 4, 5709 DYNA 4, 5709 DYNA 6, 5710 DYNA 4, 5710 DYNA 6, 5711 DYNA 4, 5711 DYNA 6, 5712 DYNA 4, 5712 DYNA 6

5713 DYNA 4, 5713 DYNA 6
5s Series: 5S.105, 5S.115, 5S.125, 5S.135, 5S.145

8s Series 8S.205, 8S.225, 8S.245, 8S.265, 8S. 285,
GENERAL CHARACTERISTICS

•Housing: Powder coated aluminium
•Application: Indoor as well as off-road
• Front Indicator and Position Light
• 24 watt
•9/32V
•50,000h / E Mark Certified / IP68
•ECE R10 Approved
•EMC - CISPR25 Class 4 (Radio Frequency Suppression)
•Dimensions 142 x 96 x 73mm

ELECTRICAL CHARACTERISTICS

•Nominal lamp power: 24 watt
•Suitable for 9-32V DC
•Vibration Test to 15G

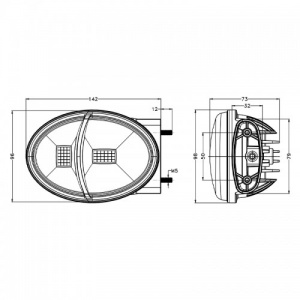

DIMENSIONS IN MM.

•Lamp width: 142 mm
•Lamp height: 96 mm
•Lamp thickness: 73 mm

O.E.M RETRO-FIT LED LIGHTING:

CREE LEDs that illuminates everything.
