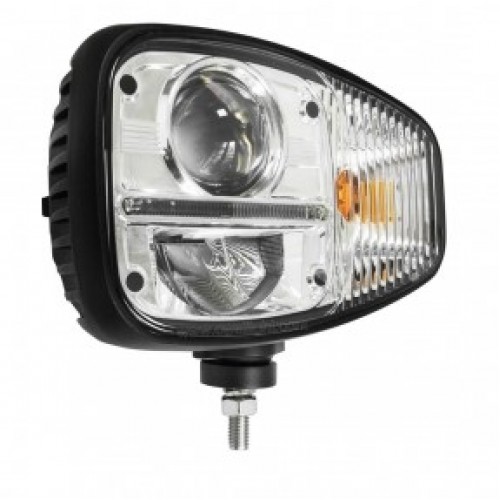

LG820 - 80W LED HEADLIGHT DIM FRONT & REAR INDICATOR - PAIR

GENERAL CHARACTERISTICS

Left & Right Hand LED Head Light
Can be bottom or rear mounted
Housing: Powder coated aluminum
Application: Indoor as well as off-road
82 watt high intensity CREE XTE LEDs
Lamp finish: PMMA
Lifespan: 30,000 hours +
Water tightness: Splashproof (IP68)
CISPR Radio suppressed
includes Deutsch Connector
TECHNICAL LIGHT PROPERTIES

Light color: Cold white / Amber
Color temperature: Cold White - 6000 K.
HIgh Beam: 82w @ 6,400Lum
Low Beam: 40w @ 3,200Lum
D.R.L: 10w
Indicator: 10w
Lux Reading: 12Lux @ 50mtr
Lux Reading: 1Lux @ 186Mtr
Vibration Test to 15g
Emark Approved: R10
Emark Approved: R87
Emark Approved: R6
ELECTRICAL CHARACTERISTICS

Nominal lamp power: 82 Watt
82 watt high intensity CREE XTE LEDs
Suitable for 10-30V DC
6,400(H) / 3,200(L) lumens
DIMENSIONS IN MM.

Lamp width: 229 mm
Lamp height: 152 mm
Lamp thickness: 106 mm
